Go-HEP: Providing robust concurrent software for HEP

Computing Round Table @JLAB, 2018-04-03

Sebastien Binet

CNRS/IN2P3/LPC-Clermont

Software in HEP

Software in HEP is mostly C++/Python (with "pockets" of Java and Fortran.)

2

Software in HEP is painful

Painful to develop:

3

Software in HEP is painful

Painful to use:

End-users tend to prefer Python because of its nicer development cycle, despite its runtime performances (or lack thereof.)

4

Software in HEP: optimization and performances

Software is painful and does not perform well:

Parallelism and concurrency need to be exposed and leveraged, but the language (C++14, C++17, ...) is ill equiped for these tasks.

And C++ is not well adapted for large, distributed development teams (of varying programming skills.)

Time for something new?

5

Are those our only options ?

6

Enter... Go

7

What is Go ?

package main

import "fmt"

func main() {
    lang := "Go"
    fmt.Printf("Hello from %s\n", lang)
}

$ go run hello.go
Hello from Go

A nice language with a nice mascot.

8

History

golang.org

9

Elements of Go

Available on all major platforms (Linux, Windows, macOS, Android, iOS, ...) and for many architectures (amd64, arm, arm64, i386, s390x, mips64, ...)

10

Concurrency

Go's concurrency primitives - goroutines and channels - derive from Hoare's Communicating Sequential Processes (CSP.)

Goroutines are like threads: they share memory.

But cheaper:

11

Goroutines

go f()
go f(x, y, ...)
12

Concurrency: basic examples

13

A boring function

We need an example to show the interesting properties of the concurrency primitives.
To avoid distraction, we make it a boring example.

// +build OMIT

package main

import (
	"fmt"
	"log"
	"time"
)

func main() {
	boring("boring!")
}


func boring(msg string) {
    for i := 0; ; i++ {
        fmt.Println(msg, i)
        time.Sleep(time.Second)
    }
}


func init() {
	// hack to make this program runnable on the playground.
	go func() {
		time.Sleep(10 * time.Second)
		log.Fatalf("time's up")
	}()
}
14

Slightly less boring

Make the intervals between messages unpredictable (still under a second).

func boring(msg string) {
    for i := 0; ; i++ {
        fmt.Println(msg, i)
        time.Sleep(time.Duration(rand.Intn(1e3)) * time.Millisecond)
    }
}
15

Running it

The boring function runs on forever, like a boring party guest.

// +build OMIT

package main

import (
	"fmt"
	"log"
	"math/rand"
	"time"
)

func init() {
	// hack to make this program runnable on the playground.
	go func() {
		time.Sleep(10 * time.Second)
		log.Fatalf("time's up")
	}()
}


func main() {
    boring("boring!")
}

func boring(msg string) {
    for i := 0; ; i++ {
        fmt.Println(msg, i)
        time.Sleep(time.Duration(rand.Intn(1e3)) * time.Millisecond)
    }
}
16

Ignoring it

The go statement runs the function as usual, but doesn't make the caller wait.

It launches a goroutine.

The functionality is analogous to the & on the end of a shell command.

package main

import (
    "fmt"
    "math/rand"
    "time"
)

func main() {
    go boring("boring!")
}

// STOP OMIT

func boring(msg string) {
	for i := 0; ; i++ {
		fmt.Println(msg, i)
		time.Sleep(time.Duration(rand.Intn(1e3)) * time.Millisecond)
	}
}
17

Ignoring it a little less

When main returns, the program exits and takes the boring function down with it.

We can hang around a little, and on the way show that both main and the launched goroutine are running.

// +build OMIT

package main

import (
	"fmt"
	"math/rand"
	"time"
)


func main() {
    go boring("boring!")
    fmt.Println("I'm listening.")
    time.Sleep(2 * time.Second)
    fmt.Println("You're boring; I'm leaving.")
}

// STOP OMIT

func boring(msg string) {
	for i := 0; ; i++ {
		fmt.Println(msg, i)
		time.Sleep(time.Duration(rand.Intn(1e3)) * time.Millisecond)
	}
}
18

Goroutines

What is a goroutine? It's an independently executing function, launched by a go statement.

It has its own call stack, which grows and shrinks as required.

It's very cheap. It's practical to have thousands, even hundreds of thousands of goroutines.

It's not a thread.

There might be only one thread in a program with thousands of goroutines.

Instead, goroutines are multiplexed dynamically onto threads as needed to keep all the goroutines running.

But if you think of it as a very cheap thread, you won't be far off.

19

Communication

Our boring examples cheated: the main function couldn't see the output from the other goroutine.

It was just printed to the screen, where we pretended we saw a conversation.

Real conversations require communication.

20

Channels

A channel in Go provides a connection between two goroutines, allowing them to communicate.

    // Declaring and initializing.
    var c chan int
    c = make(chan int)
    // or
    c := make(chan int)

    // Sending on a channel.
    c <- 1

    // Receiving from a channel.
    // The "arrow" indicates the direction of data flow.
    value = <-c
21

Using channels

A channel connects the main and boring goroutines so they can communicate.

// +build OMIT

package main

import (
	"fmt"
	"math/rand"
	"time"
)


func main() {
    c := make(chan string)
    go boring("boring!", c)
    for i := 0; i < 5; i++ {
        fmt.Printf("You say: %q\n", <-c) // Receive expression is just a value.
    }
    fmt.Println("You're boring; I'm leaving.")
}


// START2 OMIT
func boring(msg string, c chan string) {
	for i := 0; ; i++ {
		c <- fmt.Sprintf("%s %d", msg, i) // Expression to be sent can be any suitable value. // HL
		time.Sleep(time.Duration(rand.Intn(1e3)) * time.Millisecond)
	}
}
// STOP2 OMIT

func boring(msg string, c chan string) {
    for i := 0; ; i++ {
        c <- fmt.Sprintf("%s %d", msg, i) // Expression to be sent can be any suitable value.
        time.Sleep(time.Duration(rand.Intn(1e3)) * time.Millisecond)
    }
}
22

Synchronization

When the main function executes <–c, it will wait for a value to be sent.

Similarly, when the boring function executes c <– value, it waits for a receiver to be ready.

A sender and receiver must both be ready to play their part in the communication. Otherwise we wait until they are.

Thus channels both communicate and synchronize.

23

Daisy-chain

// +build OMIT

package main

import "fmt"


func f(left, right chan int) {
    left <- 1 + <-right
}

func main() {
    const n = 10000
    leftmost := make(chan int)
    right := leftmost
    left := leftmost
    for i := 0; i < n; i++ {
        right = make(chan int)
        go f(left, right)
        left = right
    }
    go func(c chan int) { c <- 1 }(right)
    fmt.Println(<-leftmost)
}
24

Chinese whispers, gopher style

25

The Go approach

"Don't communicate by sharing memory, share memory by communicating."

Goroutines and channels make it easy to express complex operations dealing with:

And they're fun to use.

26

More on Go

tour.golang.org

golang.org/doc/effective_go.html

blog.golang.org

talks.golang.org

About concurrency:

talks.golang.org/2012/waza.slide

talks.golang.org/2013/advconc.slide

About s/w engineering with Go:

talks.golang.org/2012/splash.article

27

Go for HEP

What can Go bring to science and HEP?

28

Go for HEP: challenges

$EXPERIMENT is taking data:

Convincing physicists:

Need to implement:

=> go-hep.org is the beginning of such an endeavour

29

Go-HEP

2 work areas to demonstrate Go's applicability for HEP use cases have been identified:

30

Go-DAQ

DAQ, monitoring and control command need I/O, network libraries and performances.
Go is a great fit for these and has concurrency building blocks to top it all.

These have been already tested at LPC and is gaining traction outside:

Started to gather DAQ-HEP oriented packages under the go-daq organization.

31

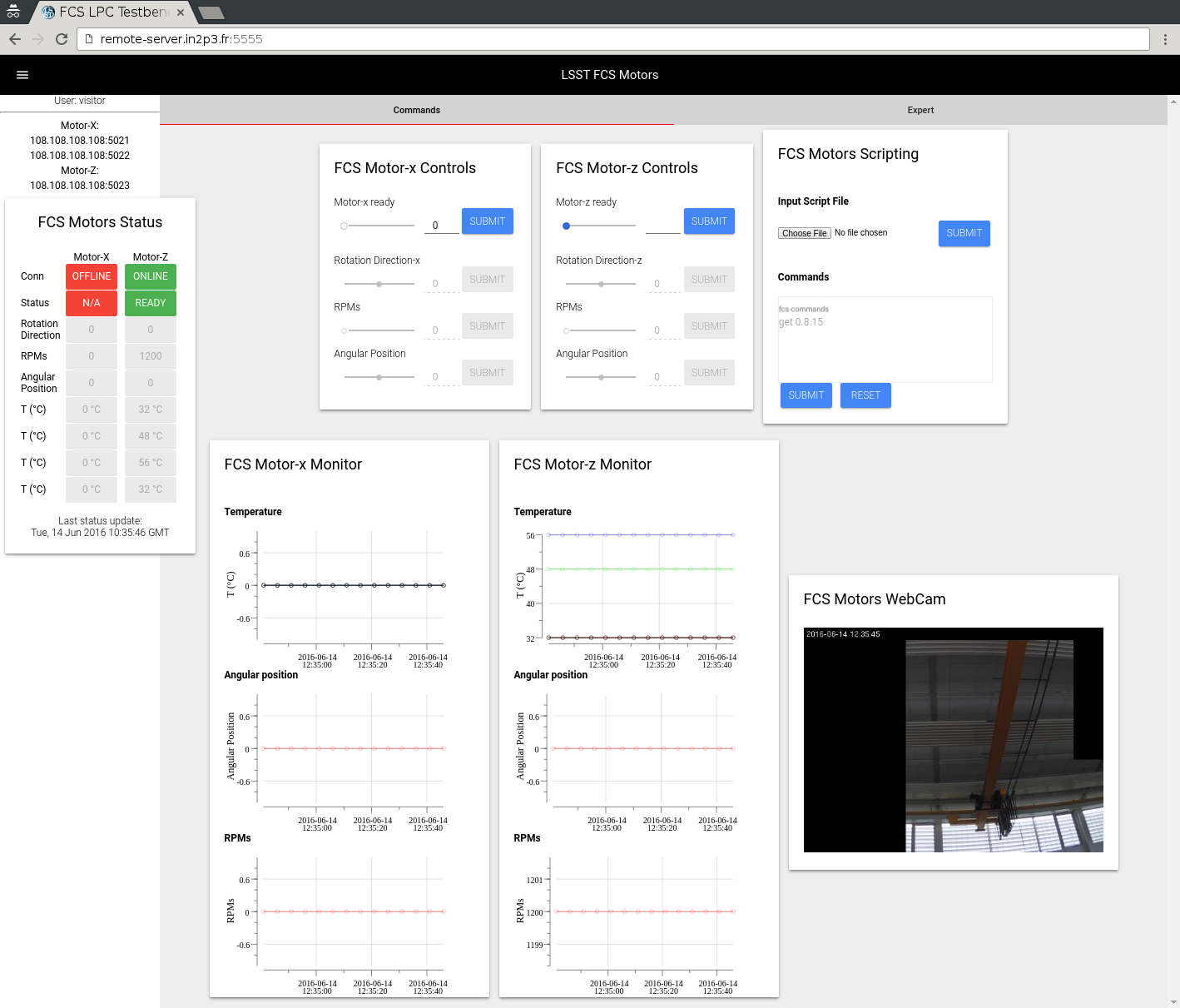

Go-DAQ (LSST)

32

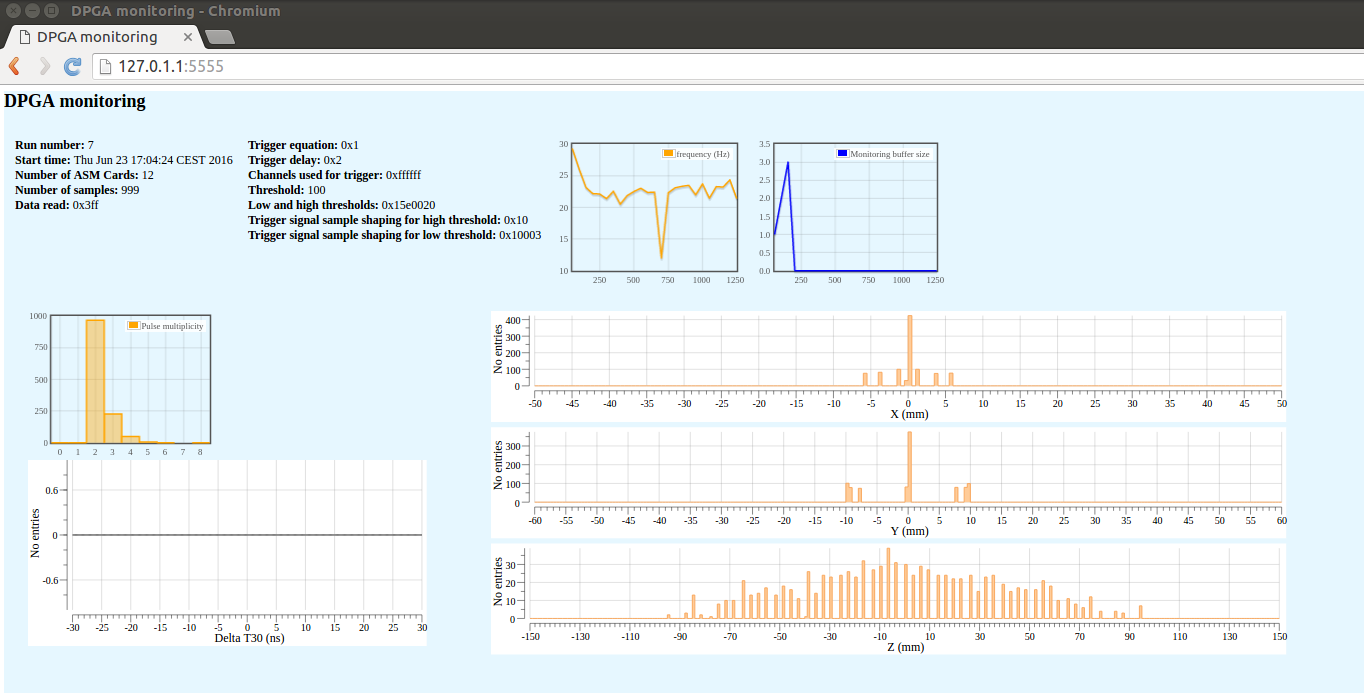

Go-DAQ (AVIRM)

33

Go-HEP - fast-simulation

34

fads

fads is a "FAst Detector Simulation" toolkit.

Code is on github (BSD-3):

go-hep.org/x/hep/fwk

go-hep.org/x/hep/fads

Documentation is served by godoc.org:

godoc.org/go-hep.org/x/hep/fwk

godoc.org/go-hep.org/x/hep/fads

35

go-hep/fads - Installation

As easy as:

$ export GOPATH=$HOME/dev/gocode
$ export PATH=$GOPATH/bin:$PATH

$ go get go-hep.org/x/hep/fads/...

Yes, with the ellipsis at the end, to also install sub-packages.

36

go-hep/fwk - Concurrency

fwk enables:

fwk relies on Go's runtime to properly schedule goroutines.

For sub-task concurrency, users are by construction required to use Go's constructs (goroutines and channels) so everything is consistent and the runtime has the complete picture.

37

go-hep/fads - real world use case

$ go get go-hep.org/x/hep/fads/cmd/fads-app
$ fads-app -help
Usage: fads-app [options] <hepmc-input-file>

ex:
 $ fads-app -l=INFO -evtmax=-1 ./testdata/hepmc.data

options:
  -cpu-prof=false: enable CPU profiling
  -evtmax=-1: number of events to process
  -l="INFO": log level (DEBUG|INFO|WARN|ERROR)
  -nprocs=0: number of concurrent events to process
38

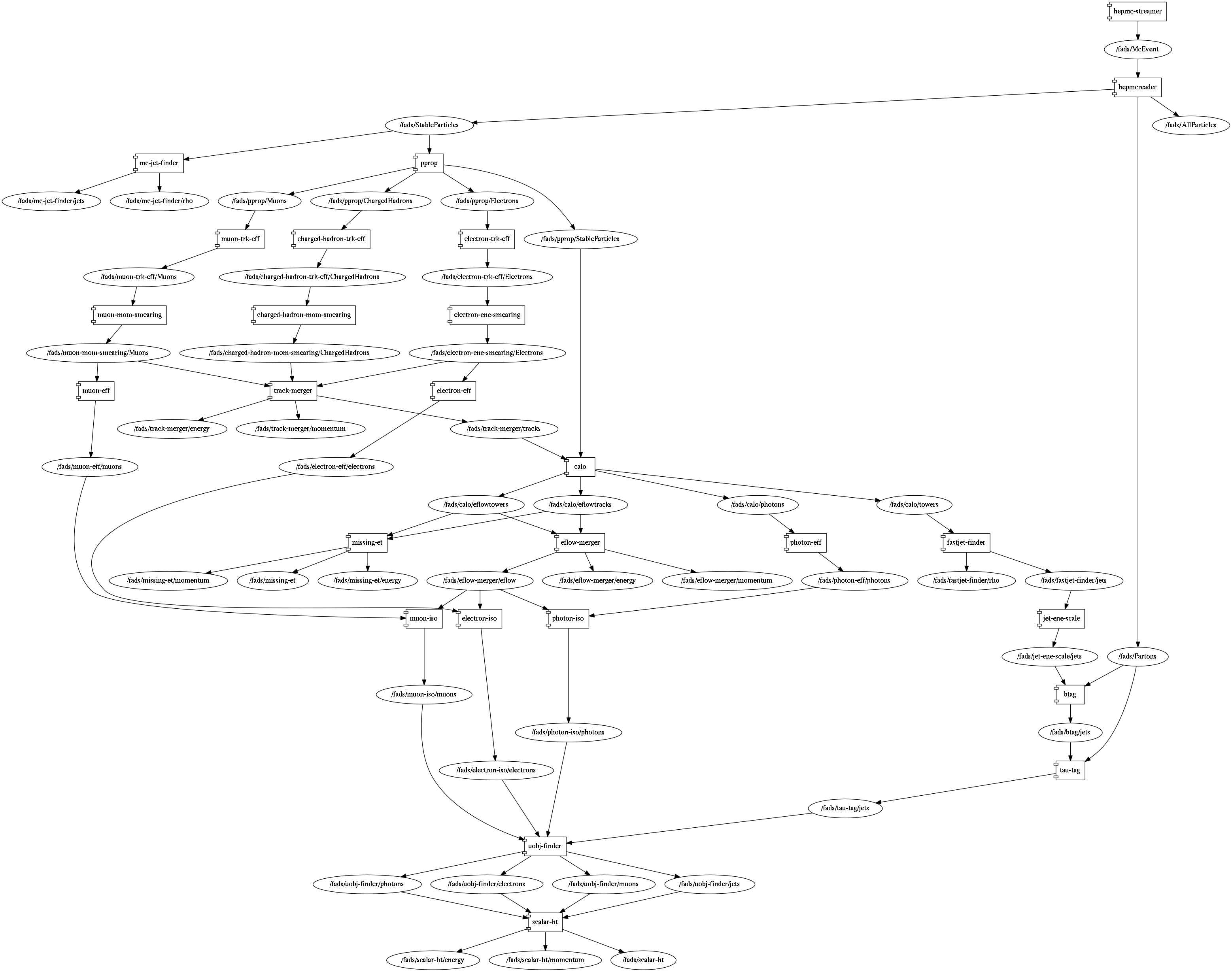

go-hep/fads - components

Caveats:

39

40

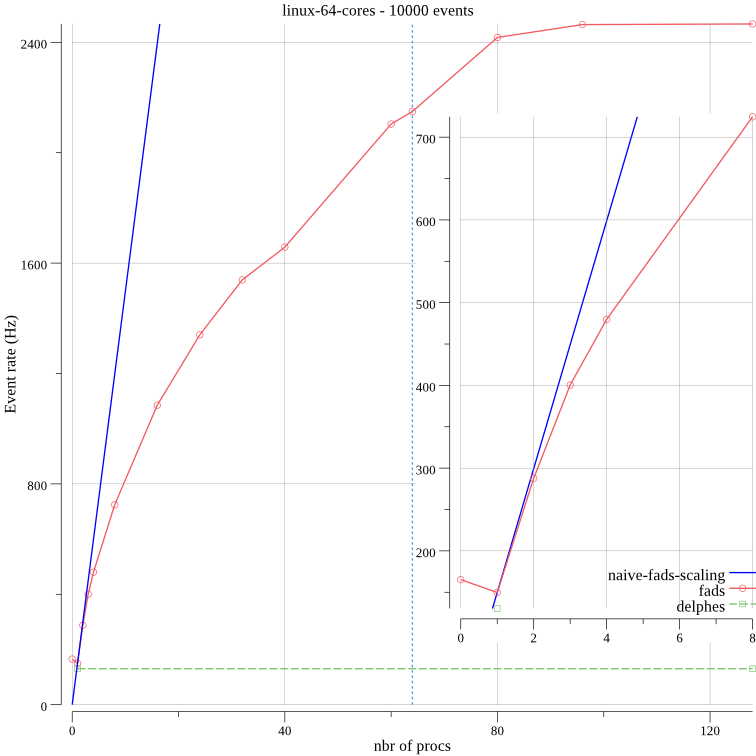

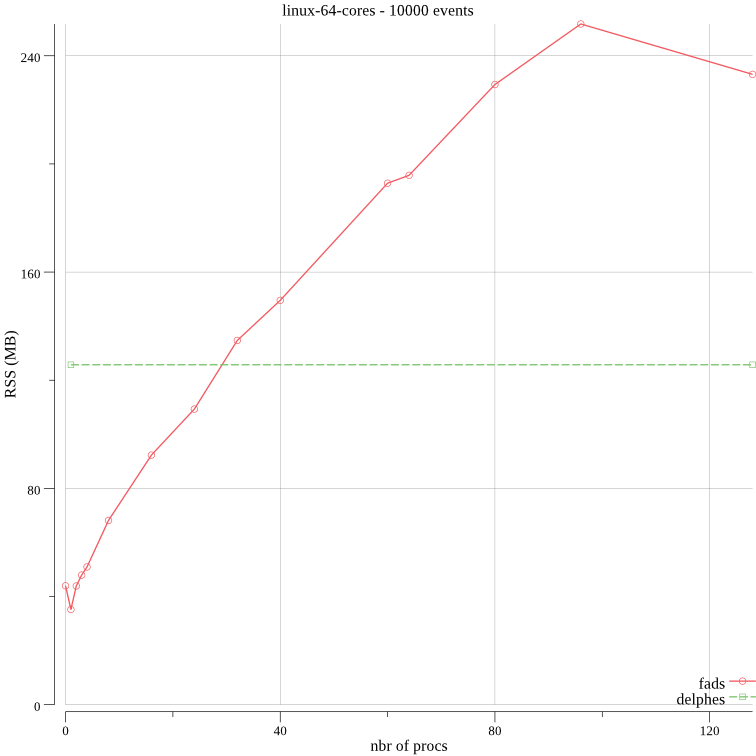

Results - testbenches

$> time delphes ./input.hepmc
$> time fads-app ./input.hepmc
41

42

43

fads: Results & Conclusions

44

Rivet & fads

45

Rivet

The Rivet toolkit (Robust Independent Validation of Experiment and Theory) is a system for validation of Monte Carlo event generators. It provides a large (and ever growing) set of experimental analyses useful for MC generator development, validation, and tuning, as well as a convenient infrastructure for adding your own analyses.

$> repeat 10 'time rivet --analysis=MC_GENERIC -q  ./Z-hadronic-LEP.hepmc > /dev/null'
real=13.32 user=12.97 sys=0.33 CPU=99% MaxRSS=26292
real=13.31 user=12.93 sys=0.37 CPU=99% MaxRSS=26356
real=13.29 user=12.93 sys=0.35 CPU=99% MaxRSS=26440
real=13.31 user=12.95 sys=0.35 CPU=99% MaxRSS=26356
real=13.29 user=13.01 sys=0.27 CPU=99% MaxRSS=26280
real=13.31 user=12.97 sys=0.32 CPU=99% MaxRSS=26328
real=13.35 user=12.93 sys=0.41 CPU=99% MaxRSS=26276
real=13.30 user=12.96 sys=0.33 CPU=99% MaxRSS=26624
real=13.30 user=12.93 sys=0.36 CPU=99% MaxRSS=26440
real=13.35 user=12.98 sys=0.36 CPU=99% MaxRSS=26484
46

fads-rivet-mc-generic

Reimplementation on top of go-hep/fwk+fads of the MC_GENERIC analysis.

Bit-to-bit identical results.

$> go get go-hep.org/x/hep/fads/cmd/fads-rivet-mc-generic

$> repeat 10 'time fads-rivet-mc-generic -nprocs=1 ./Z-hadronic-LEP.hepmc > /dev/null'
real=6.04 user=5.66 sys=0.12 CPU= 95% MaxRSS=23384
real=5.70 user=5.62 sys=0.09 CPU=100% MaxRSS=21128
real=5.71 user=5.58 sys=0.11 CPU= 99% MaxRSS=22208
real=5.68 user=5.60 sys=0.08 CPU=100% MaxRSS=23156
real=5.71 user=5.63 sys=0.08 CPU=100% MaxRSS=20672
real=5.78 user=5.62 sys=0.09 CPU= 98% MaxRSS=22328
real=5.67 user=5.62 sys=0.05 CPU=100% MaxRSS=20968
real=5.68 user=5.57 sys=0.07 CPU= 99% MaxRSS=23748
real=5.70 user=5.60 sys=0.10 CPU=100% MaxRSS=21360
real=5.72 user=5.65 sys=0.07 CPU=100% MaxRSS=22764
47

ROOT I/O

Go-HEP provides some amount of interoperability with ROOT-{5,6} via go-hep.org/x/hep/rootio, a pure-Go package (no C++, no ROOT, no PyROOT, just Go) that:

For the moment, only the "I" part of ROOT I/O has been implemented (O is starting), but it's already quite useful:

48

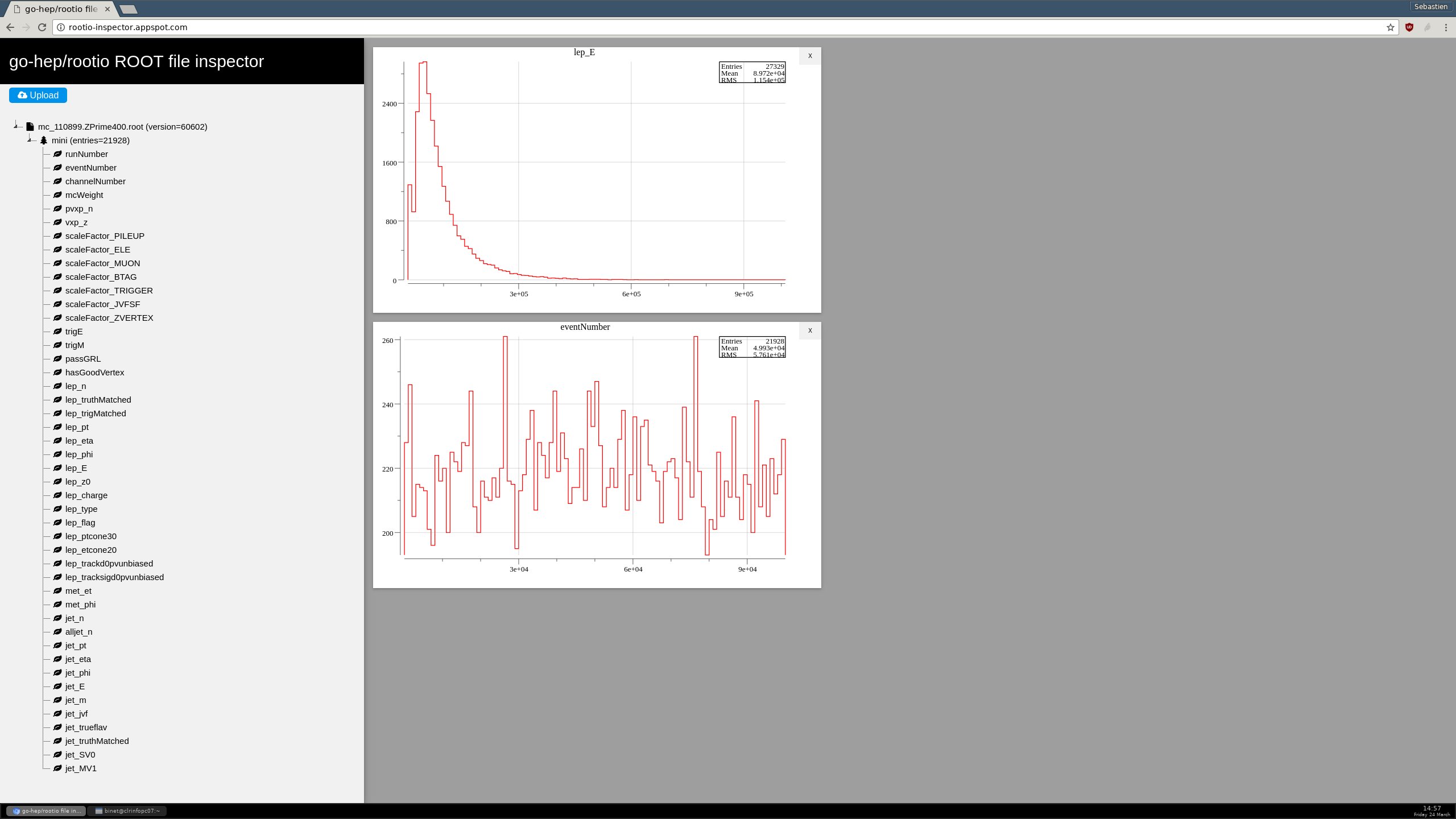

root-srv (served by AppEngine)

49

ROOT I/O

f, err := rootio.Open("my-file.root")
obj, err := f.Get("my-tree")
tree := obj.(rootio.Tree)

type Data struct {
    I64    int64       `rootio:"Int64"`
    F64    float64     `rootio:"Float64"`
    Str    string      `rootio:"Str"`
    ArrF64 [10]float64 `rootio:"ArrayFloat64"`
    N      int32       `rootio:"N"`
    SliF64 []float64   `rootio:"SliceFloat64"`
}

var data Data
sc, err := rootio.NewScanner(tree, &data)

for sc.Next() {
    err := sc.Scan()
    if err != nil {
        log.Fatal(err)
    }
    fmt.Printf("entry[%d]: %+v\n", sc.Entry(), data)
}
50

ROOT I/O features

struct P3 { int32_t Px; double  Py; int32_t Pz; };

struct Event {
  int16_t  I16;  int32_t  I32; int64_t  I64; uint32_t U32;
  float    F32;  double   F64;
  TString  TStr; std::string StdStr;
  P3       P3;
  int16_t  ArrayI16[ARRAYSZ]; int32_t  ArrayI32[ARRAYSZ];
  double   ArrayF64[ARRAYSZ];
  int32_t  N;
  int16_t  *SliceI16;  //[N]
  int32_t  *SliceI32;  //[N]
  double   *SliceF64;  //[N]
  std::vector<int64_t> StlVecI64; std::vector<std::string> StlVecStr;
};
51

ROOT I/O performances

$> ll *root
-rw-r--r-- 1 binet binet 686M Aug 16 11:00 f64s-default-compress.root
-rw-r--r-- 1 binet binet 764M Aug 16 15:39 f64s-no-compress.root

$> root-ls -t f64s-no-compress.root
=== [f64s-no-compress.root] ===
version: 61002
TTree       tree          tree    (entries=1000000)
  Scalar_0  "Scalar_0/D"  TBranch
  Scalar_1  "Scalar_1/D"  TBranch
  Scalar_2  "Scalar_2/D"  TBranch
  [...]
  Scalar_98 "Scalar_98/D" TBranch
  Scalar_99 "Scalar_99/D" TBranch
52

ROOT - C++

auto f = TFile::Open(argv[1], "read");
auto t = (TTree*)f->Get("tree");

const Long_t BRANCHES= 100;

Double_t v[BRANCHES] = {0};

for (int i = 0; i < BRANCHES; i++) {
    auto n = TString::Format("Scalar_%d", i);
    t->SetBranchAddress(n, &v[i]);
}

Long_t entries = t->GetEntries();
Double_t sum = 0;
for ( Long_t i = 0; i < entries; i++ ) {
    t->GetEntry(i);
    sum += v[0];
}

std::cout << "sum= " << sum << "\n";
53

Go-HEP/rootio

f, err := rootio.Open(flag.Arg(0))
obj, err := f.Get("tree")
t := obj.(rootio.Tree)

var vs [100]float64
var svars []rootio.ScanVar
for i := range vs {
    svars = append(svars, rootio.ScanVar{
        Name:  fmt.Sprintf("Scalar_%d", i),
        Value: &vs[i],
    })
}

sum := 0.0
scan, err := rootio.NewScannerVars(t, svars...)
for scan.Next() {
    err = scan.Scan()
    if err != nil {
        log.Fatal(err)
    }
    sum += vs[0]
}

fmt.Printf("sum= %v\n", sum)
54

Results -- No Compression

$> time ./cxx-read-data
$> time ./go-read-data

=== ROOT === (VMem=517Mb)
real=6.70 user=6.18 sys=0.51 CPU= 99% MaxRSS=258296
real=6.84 user=6.32 sys=0.51 CPU= 99% MaxRSS=257748
real=6.82 user=6.29 sys=0.52 CPU= 99% MaxRSS=258348
real=6.66 user=6.13 sys=0.53 CPU=100% MaxRSS=258440

=== go-hep/rootio === (VMem=43Mb)
real=12.94 user=12.39 sys=0.56 CPU=100% MaxRSS=42028
real=12.93 user=12.37 sys=0.56 CPU=100% MaxRSS=42072
real=12.96 user=12.38 sys=0.58 CPU=100% MaxRSS=41984
real=12.94 user=12.36 sys=0.57 CPU=100% MaxRSS=42048
55

Results -- with default compression

=== ROOT === (VMem=529Mb)
real=20.61 user=11.86 sys=0.63 CPU=60% MaxRSS=292640
real=12.56 user=11.54 sys=0.51 CPU=96% MaxRSS=290124
real=12.04 user=11.50 sys=0.52 CPU=99% MaxRSS=290444
real=12.05 user=11.54 sys=0.50 CPU=99% MaxRSS=290324

=== go-hep/rootio === (VMem=83Mb)
real=36.43 user=35.20 sys=0.69 CPU= 98% MaxRSS=81196
real=35.75 user=35.15 sys=0.63 CPU=100% MaxRSS=81644
real=35.76 user=35.10 sys=0.69 CPU=100% MaxRSS=81856
real=35.70 user=35.18 sys=0.54 CPU=100% MaxRSS=81944

Only ~2 times slower, w/o any optimization wrt baskets buffering, TTreeCache, ...
No concurrency (yet.)

Of course, go-hep/rootio provides less features than ROOT, isn't as battle-tested and is probably full of bugs.
But it's in the same order of magnitude, performance-wise.

56

Conclusions - Go

Go improves on C/C++/Java/... and addresses C/C++ and python deficiencies:

$> GOARCH=arm64 GOOS=linux   go build -o foo-linux-arm64.exe
$> GOARCH=amd64 GOOS=windows go build -o foo-windows-64b.exe

and:

57

Conclusions - Go-HEP

Go-HEP provides some building blocks that are already competitive with battle-tested C++ programs, both in terms of CPU, memory usage and cores' harnessing.

Further improvements are still necessary in the ROOT I/O compatibility part:

Further improvements in the Jupyter area are also warranted (but that's tackled by the Go data science community at large):

Go-HEP has also users outside LPC-Clermont:

58

Conclusions

Go is great at writing small and large (concurrent) programs.
Also true for science-y programs, even if the amount of libraries can still be improved.

Write your next tool/analysis/simulation/software in Go?

59

Go-HEP packages

60

Go-HEP packages (cont'd)

61

Go-HEP commands

62

Acknowledgements / resources

tour.golang.org

talks.golang.org/2012/splash.slide

talks.golang.org/2012/goforc.slide

talks.golang.org/2012/waza.slide

talks.golang.org/2012/concurrency.slide

talks.golang.org/2013/advconc.slide

talks.golang.org/2014/gocon-tokyo.slide

talks.golang.org/2015/simplicity-is-complicated.slide

talks.golang.org/2016/applicative.slide

agenda.infn.it/getFile.py/access?contribId=24&sessionId=3&resId=0&materialId=slides&confId=11680

63

Thank you

Sebastien Binet

CNRS/IN2P3/LPC-Clermont

https://github.com/sbinet

@0xbins

sebastien.binet@clermont.in2p3.fr

Use the left and right arrow keys or click the left and right edges of the page to navigate between slides.
(Press 'H' or navigate to hide this message.)
